Membrane Dryer

A membrane dryer is the point-of-use dryer for compressed air drops that need dry air but don't have power and aren't served well by a central dryer, a remote instrument enclosure, an outdoor pneumatic-actuator panel, a portable skid, a dental or small-medical air outlet, an analytical instrument bench. It sits at the drop it serves rather than in the compressor room, with mandatory coalescing pre-filtration immediately upstream. Passive units have no electrical connection at all; they're sized for small flows (single-digit SCFM up to ~100 SCFM at point-of-use) and trade purge-air consumption for zero electricity and zero moving parts. It is the wrong tool for whole-plant drying; quote refrigerated or desiccant for that.

Pictorial Representative membrane dryer

Membrane Dryer — representative illustration

Real-world reference Representative membrane dryer

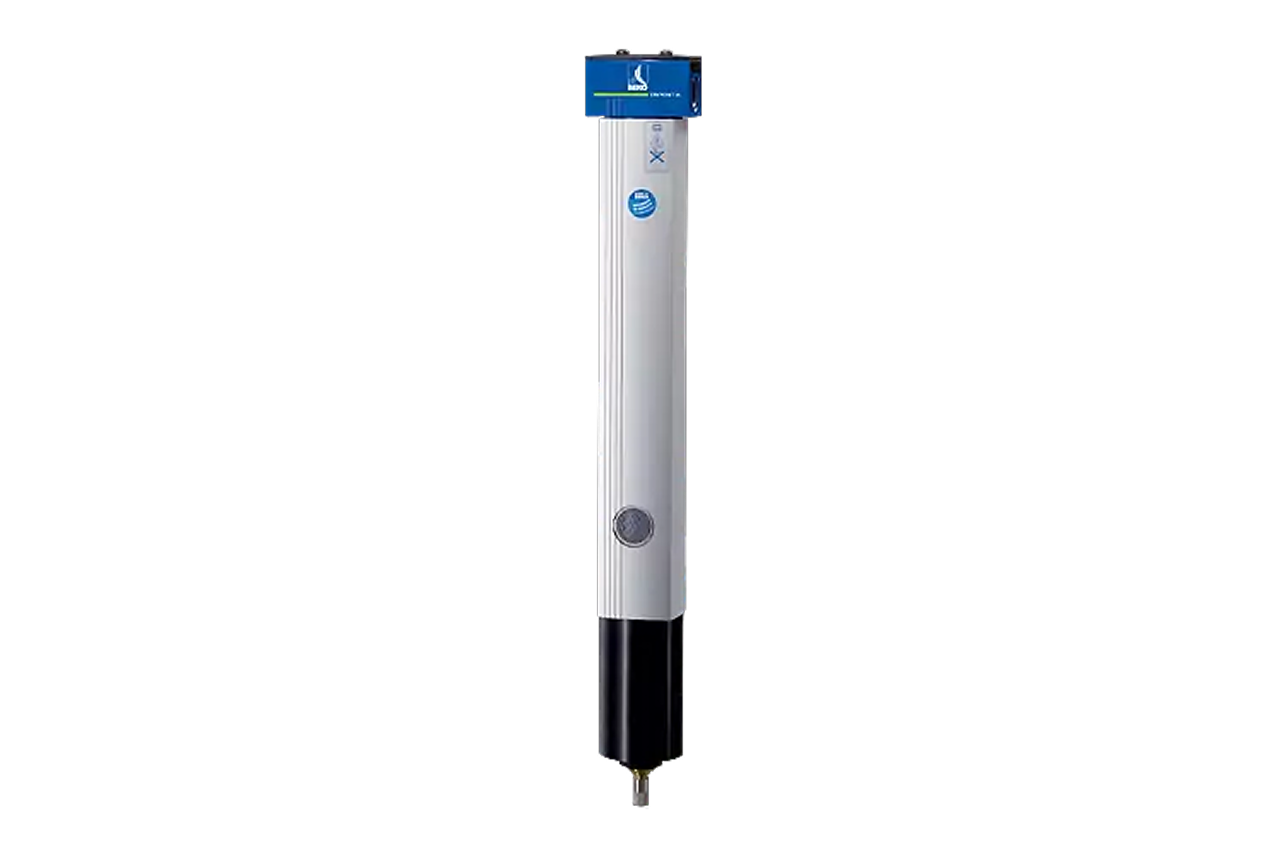

Membrane Dryer — representative product photo

Why it's needed

Why this matters.

When a membrane dryer is the right call, and when to spec something else. Review the points below.

01 · Key point

It dries air at the drop, not at the compressor.

Moisture re-condenses any time pipe drops below the central dryer''s PDP, a +40°F refrigerated upstream still freezes a 20°F outdoor actuator panel. Dry at the drop and the problem disappears: remote instrument enclosures, outdoor actuator panels, dental and lab benches.

02 · Key point

Passive, no power, no moving parts.

A bundle of hollow-fiber membranes permeates vapor through the fiber walls while dried air continues through the bores. No switching cycle, no desiccant, no refrigerant. The passive variant needs zero electrical service, install and forget.

03 · Key point

Membrane is essentially permanent.

No calendar element replacement on the fiber bundle itself; the only recurring item is the 12-month coalescing pre-filter element. If upstream protection is maintained, the dryer outlives most of the equipment it serves.

04 · Pro tip

Quote flow AND dewpoint together.

Membrane PDP is flow-dependent, a unit rated -40°F PDP at 5 SCFM might deliver only +30°F at 25 SCFM. Pick the row on the dryer''s spec sheet that matches the application; don''t quote at the +35°F SCFM rating and promise -40°F output.

05 · Where not to use

Whole-plant or high-flow drying.

Capacity tops out around 100 SCFM at point-of-use: there is no economical membrane dryer at the 300+ SCFM plant scale. → Switch to refrigerated for indoor warm-pipe plant air, or desiccant for sub-freezing / Class 1-2 plant air.

06 · Where not to use

Without coalescing pre-filtration.

Liquid water, oil aerosol, or particulate permanently destroys the fibers. → Mandatory 0.01-micron coalescing pre-filter immediately upstream (leading-tier membrane dryers integrate it on most models). Add activated carbon on oil-lubricated compressors. Skipping it means the dryer fails in year two and nobody connects it back to the missed element change.

07 · Where not to use

Audited pharma / NFPA medical central air.

Membrane serves point-of-use; audited central-air systems require documented dewpoint logging on a desiccant or refrigerated package. → Switch to desiccant + carbon + sterile for pharma USP, or oil-free compressor + desiccant + sterile for NFPA 99 medical central supply. Membrane is fine for the dental chair, wrong for the hospital MGPS.

Key selection criteria

What we need to spec it right.

From the machine spec sheet to the part number. Answer what you know, leave the rest blank, and send.

04Choose your priority · core differentiator

Whatever your lever — performance, value, or price — SPC has the right brand.

Pick the priority; the quote desk handles the cross-reference.

01 Performance 1 brand

02 Value 1 brand

Where it's used

Industries served.

Each industry below uses this product across the listed areas. Open an industry to see how it fits the rest of its system.

Pharmaceutical, Medical Device & Laboratory →

Laboratory analytical-instrument air

Electronics & Semiconductor →

Photolithography & semiconductor tool-level supply

Medical & Dental Equipment →

Dental offices & small medical practices

Marine & Shipbuilding →

Dive shops & specialty breathing-air fills

Also applies to Remote instrument enclosures & field instrumentation · Outdoor pneumatic actuator panels (cold climate) · Portable / mobile skids

Install · 8 critical steps

The things that matter on the first install.

Step 01

Confirm point-of-use sizing

Membrane dryers serve a single drop, single instrument, or single skid, not whole-plant. Verify SCFM and target PDP match the dryer's spec for that flow + PDP combination. If the application demands whole-plant drying, install refrigerated or desiccant instead.

Step 02

Install upstream coalescing protection

Coalescing 0.01 micron immediately upstream is MANDATORY. Most leading-tier membrane dryer models include integrated coalescing pre-filter; verify it's in place and within service life. If installing a dryer without integrated pre-filter, add an external coalescing housing. Skipping this destroys the membrane.

Step 03

Position vertically per manufacturer diagram

Membrane dryers typically install vertically with inlet at the top and outlet at the bottom, so any residual condensate drains rather than re-entering the airstream. Manufacturer drawing is authoritative; follow it.

Step 04

Route the purge discharge to atmosphere

The dryer continuously discharges a small purge stream, 10-20% of rated flow. Route the purge port to an outdoor or vented location; don't plumb it back into a closed system or into a regulated discharge. Purge is dry oil-free air at low pressure.

Step 05

Verify inlet temperature and pressure are within the dryer's rated window

Membrane performance degrades sharply outside the rated window: too cold reduces drying capacity; too hot accelerates membrane degradation. Manufacturer inlet temperature and pressure curves are in the dryer datasheet; verify the install environment fits before commissioning.

Step 06

For electronically regulated units, wire the control circuit

Smart membrane dryers use a control circuit to modulate purge based on real-time dewpoint demand, cuts purge consumption when full drying isn't needed. Wire power and any control signals per the manufacturer's drawing. Passive units skip this step.

Step 07

Commission with a dewpoint test

Confirm output PDP at rated flow with a calibrated dewpoint meter. Document in the customer's air-quality binder. Most installation problems show up as PDP not reaching spec: that's the signal to verify upstream coalescing, inlet temperature, and actual flow are within rated parameters.

Step 08

Set the maintenance cadence

Membrane is essentially permanent if protected; recurring maintenance is the upstream coalescing element (12-month replacement) and, on electronically regulated units, the dewpoint sensor calibration (every 12-24 months). Brief the operator on the upstream coalescing change as the primary maintenance item; skipping it destroys the dryer.

Troubleshoot · top failures

Most returns trace to one of these causes.

Symptom

Most likely cause

Fix

Output dewpoint not reaching spec

Actual flow exceeds dryer's rated SCFM at the target PDP (most common, install at higher flow than the dryer is sized for), upstream coalescing failure flooding the membrane with liquid, purge discharge restricted or plugged, or membrane degraded from a past upset condition.

Verify actual SCFM against dryer spec sheet at the target PDP, most "underperforming" membrane dryers are correctly performing but mis-sized for the actual flow. Check upstream coalescing element. Verify purge port is unobstructed. If all upstream conditions are correct and PDP is still off, the membrane is damaged and the dryer needs replacement.

Dryer suddenly stopped drying after months or years of normal operation

Membrane fibers damaged by liquid water, oil, or particulate breakthrough from an upstream filter failure. Almost always traces back to the coalescing pre-filter (skipped replacement, undersized, or installed wrong).

Replace the dryer. Diagnose and fix the upstream failure BEFORE installing the replacement, otherwise the new dryer fails the same way. Common scenarios: coalescing element 2x past replacement life, integrated pre-filter sump full of water, oil-lubricated compressor with failing air-oil separator dumping bulk oil downstream.

Continuous loud hissing from the purge discharge

Normal operation: membrane dryers continuously vent purge air to atmosphere. Volume varies with dryer size; small units are quiet, larger units (>50 SCFM) can be audible. Customers unfamiliar with membrane technology sometimes mistake this for a leak.

Educate the customer, purge is the dryer's only operating cost and the discharge is supposed to be there. If hiss is louder than rated or accompanied by output PDP problems, then it's an actual issue (likely membrane damage causing excess permeation).

Liquid water at the outlet port

Major upstream coalescing failure flooding the dryer (bulk liquid passing through the membrane without being permeated), inlet temperature too cold causing condensation in the housing, or, rarely, membrane catastrophic damage allowing air bypass around the fibers.

Replace coalescing pre-filter immediately and inspect for damage. Verify inlet temperature is within rated window. If both are good and water persists at outlet, the membrane has failed and the dryer needs replacement.

Customer complaint: purge consumption seems high

Passive (non-regulated) units run at

ed purge consumption regardless of actual demand, typically 10-20% of rated flow continuous. Customers comparing to refrigerated dryers (no purge loss) sometimes misperceive this as inefficient. Fix: For high-purge-cost concerns, upgrade to electronically regulated unit that modulates purge based on dewpoint demand, can cut purge consumption 50%+ when partial drying is acceptable. Otherwise educate on the no-power, no-maintenance trade-off; purge IS the cost of the passive architecture.

Dryer not certified for the application's standard

Customer assumed membrane carries the same documentation as a desiccant dryer for pharma/medical applications. Membrane dryers serve point-of-use; pharma/medical/audited installs typically require desiccant or refrigerated with specific dewpoint logging.

Re-scope the application. For NFPA 99 medical-air, route to oil-free compressor + desiccant + sterile filter package. For pharma USP, route to desiccant + carbon + sterile. Membrane is right for instrument-air at remote drops, but not for audited central-air systems.
