What it is

Solenoid Valve

A solenoid valve is a directional control valve (DCV) shifted by an electric coil instead of a hand or foot. Energize the coil from a PLC (Programmable Logic Controller, the machine's electronic brain), push button, or sensor and the valve routes compressed air to a cylinder's ports; de-energize it and the valve returns or holds its last command. It is the universal bridge between the electrical control system and every pneumatic actuator on the machine, the single highest-unit-count active pneumatic component on any modern automated line, mounted inline at a single station or bolted to a shared sub-base manifold across 8 to 24 valves on one machine.

Pictorial Representative solenoid valve

Solenoid Valve — representative illustration

Real-world reference Representative solenoid valve

Solenoid Valve — representative product photo

Why it's needed

Why this matters.

When the solenoid is the right DCV, and when to spec something else. Review the points below.

01 · Key point

PLC fires it directly.

A 1.5–5 W coil at 24 VDC drives a tiny pilot; the pilot uses the inlet air to shift the main spool. Thirty solenoids run off PLC outputs with no power amplifiers, the universal electrical-to-pneumatic bridge.

02 · Key point

One family, four behaviors.

5/2 single springs to safe on power loss. 5/2 double holds last position (memory). 5/3 centers closed/open/pressure for hold or hand-move. 3/2 for single-acting or vacuum. One base series, four cylinder behaviors.

03 · Key point

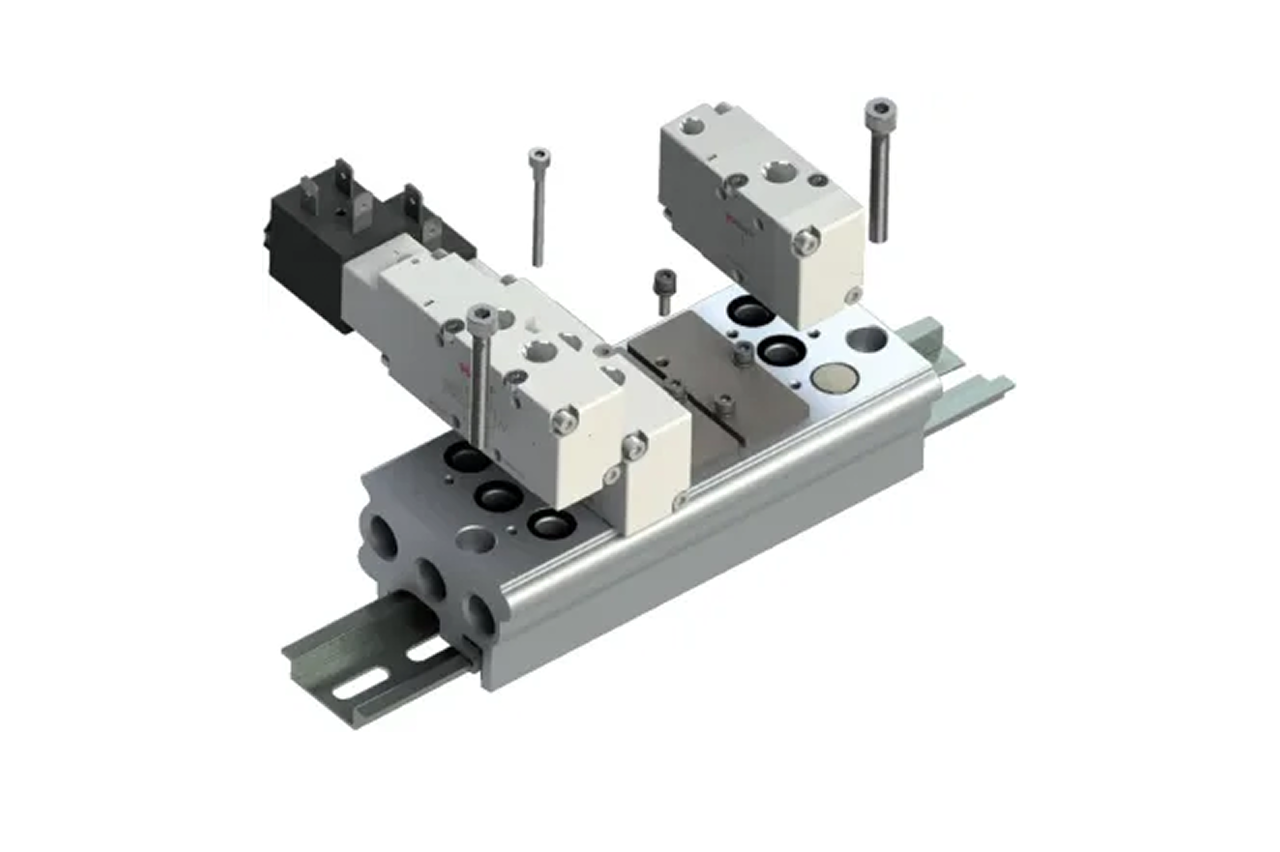

Manifolds and ISO bases scale.

Industry Leader tier valves drop onto ISO 5599 / 15407 sub-bases: cross-brand swap on the same manifold, 50M+ cycle life on the Industry Leader tier for 24/7 packaging duty.

04 · Pro tip

Match coil voltage to the PLC.

24 VDC is the modern default. 110/120 VAC is legacy US; 220/240 VAC is legacy European; 12 VDC is mobile. A 24 VDC coil on 110 VAC burns in seconds; confirm the PLC output spec before quoting, every time.

05 · Where not to use

Classified hazardous areas.

Coil arcs on switching; surface heats on duty. Either ignites a flammable gas or dust. → Re-spec to ATEX solenoid any time the location carries a Class/Division or ATEX zone classification.

06 · Where not to use

Below ~25 PSI pilot minimum.

Pilot-operated valves silently won't shift below their pilot minimum, customer reports "cylinder not moving" with no other symptom. → Switch to a direct-acting variant for low-pressure or vacuum service (operates to 0 PSI, lower flow).

07 · Where not to use

8+ valves on one machine.

Loose inline valves stop scaling at the 8th station, fittings, wiring, and cabinet space dominate the build. → Switch to manifold sub-base, or step up to IO-Link valve terminal if the customer has an IIoT initiative or wants per-valve diagnostics.

Key selection criteria

What we need to spec it right.

From the machine spec sheet to the part number. Answer what you know, leave the rest blank, and send.

04Choose your priority · core differentiator

Whatever your lever — performance, value, or price — SPC has the right brand.

Pick the priority; the quote desk handles the cross-reference.

01 Performance 1 brand

02 Value 1 brand

03 Price 2 brands

Where it's used

Industries served.

Each industry below uses this product across the listed areas. Open an industry to see how it fits the rest of its system.

Pharmaceutical, Medical Device & Laboratory →

Food, pharma, and washdown.

Packaging & Printing →

End-of-line packaging and palletizing.

Also applies to OEM automation, the universal directional control element. · Retrofit and machine modernization. · Single-station manual work cells. · Mobile and off-highway equipment. · Vacuum and air-motor control.

Install · 6 critical steps

The things that matter on the first install.

Step 01

Match coil voltage to PLC output before opening the box

24 VDC coil on 110 VAC burns instantly. 110 VAC coil on 24 VDC will not actuate. Coil voltage is embossed on the coil body and called out in the part number; verify both against the wiring schematic before installation.

Step 02

Confirm minimum inlet pressure for pilot-operated valves

Most production solenoids are pilot-operated and need ~25 PSI minimum for the pilot to shift the main spool. For low-pressure or vacuum service, specify a direct-acting variant that works to 0 PSI, slower, lower-flow, but actually operational. Pilot-operated valves below their minimum silently fail to shift, and the customer reports the cylinder as "not moving" with no other symptom.

Step 03

Plumb exhaust ports to mufflers, sized to total flow

5/2 and 5/3 have two exhausts; 3/2 has one. Never leave exhausts open in a dusty or wet environment. If piped to a common exhaust manifold, size the line to total simultaneous flow or stations back-pressure each other and cylinders move erratically. Sintered bronze for standard environments; filtered exhaust mufflers for clean-room or food-contact.

Step 04

Wire surge suppression on DC coils driving inductive loads

When a 24 VDC coil de-energizes, the collapsing magnetic field generates a back-EMF spike that can exceed 1000 V and destroy the PLC output transistor over time. A diode (DC) or RC snubber (AC) installed across the coil terminals clamps the spike. Most modern coils include integral suppression; verify on the datasheet.

Step 05

Release manual overrides during commissioning

Most solenoids include a manual override that lets a tech shift the valve without electrical signal. Some are momentary, some are detented (turn-to-lock). A detented override left engaged means the valve will not respond to PLC commands: confusing "valve dead" failure with the coil testing fine. Verify all overrides are released before leaving the install.

Step 06

Pair every valve with speed controllers + upstream FRL

The valve sets direction. The speed controller sets cylinder speed. The FRL sets pressure and conditions the air. Quoting the valve alone leaves the customer to source two adjacent products from a competitor and creates the air-quality conditions that shorten seal life.

Troubleshoot · top failures

Most returns trace to one of these causes.

Symptom

Most likely cause

Fix

Coil energizes (clicks, gets warm) but valve does not shift

Inlet pressure below pilot minimum (most common, pilot-operated valve under ~25 PSI), or manual override engaged in detented position, or spool jammed by contamination, or external pilot port not connected.

Check inlet pressure first; if low, fix the supply or switch to direct-acting. Verify the manual override is released. Cycle the valve manually with the override, if it shifts on override but not on coil signal, the pilot is blocked; if it does not shift on override either, the spool is jammed. Disassemble and clean, or replace the spool kit.

Continuous audible hiss from valve body or exhaust ports at rest

Internal spool or seat seal damaged and leaking across the spool (most common after years of contamination), or manual override leaking past its seat, or cracked body from over-torqued fittings.

Isolate the leak source, listen at exhaust ports vs. body. Leak at an exhaust port at rest = supply-to-exhaust seal failed; install the seal kit. Leak at the body or fitting threads = replace the valve. Fleet-wide leaks point at upstream contamination; check the FRL coalescing filter.

Valve shifts but cylinder moves slowly or erratically

Valve Cv undersized for cylinder air demand, or downstream speed controller misadjusted, or kinked/undersized hose, or exhaust muffler clogged with oil from upstream lubricator overuse.

Open the speed controllers fully and observe. If the cylinder runs fast with controls open, the speed controls were misadjusted. If still slow, the bottleneck is upstream; check mufflers, then hose ID, then valve Cv vs. cylinder demand.

Coil burns out repeatedly on the same station

Voltage mismatch (rare to be missed twice but happens on retrofits), or ambient temperature exceeds coil rating (coils derate above ~50°C, engine compartments, hot enclosures), or duty cycle exceeds rating, or stuck spool causes the coil to overheat trying to shift.

Verify voltage against the PLC. Check ambient at the coil, switch to a high-temp variant or relocate if above rating. Check duty cycle against spec. If voltage/temp/duty are in spec, the spool is sticking, clean or replace.

5/3 valve drifts off center over time

Spool seals leaking past the center position (closed-center traps air at both ports; a worn seal equalizes and lets the cylinder creep), or internal pilot bleed plugged.

For a creeping 5/3 center, the seal kit is the answer, no field workaround. For mission-critical hold-position, consider a 5/2 double solenoid plus pilot-operated check valves at the cylinder ports, a more positive hold than a 5/3 closed-center delivers long-term.

Valve fires but PLC reports no position feedback

This is a position-sensor problem, not a valve problem. The cylinder position sensor is misaligned, failed, or wired wrong.

Verify the magnetic switch position against actual end-of-stroke. Cycle slowly and watch the switch LED. Re-clamp or replace as needed. Do not replace the valve for this symptom.
